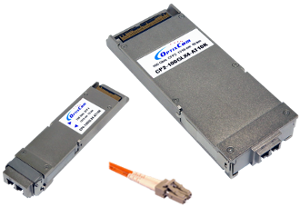

100G 4xCWDM Small Form (CFPx) Optical Transceivers

OptixCom’s 100 Gb/s (4x25 Gb/s) CFPx optical transceiver is designed to operate with 4xCWDM channels (1296, 1300, 1305 and 1309 nm) using high performance EML transmitter, PIN receiver, and advanced high speed elctronic design.  100 Gb/s is achieved through multiplexing and demultiplexing of these 4x25 Gb/s channels into a duplex LC connector interface.  The transceiver featuers Management Interface I/O Lines (MDIO), built-in Clock and Data Recovery (CDR), and a hot pluggable electrical interface. It is compliant with 100G Ethernet standard and CFP Multi-Source Agreement (MSA) for datacom applications.  Two package form factors, CFP2 and CFP4, are available.

  • 4x25 Gb/s CWDM channels for 100 Gb/s
  • Duplex LC connector
  • 104-pin connector z-axis hot pluggable for CFP2
  • 56-pin connector z-axis hot pluggable for CFP4
  • CFP MSA, 100GBASE-LR4, and IEEE 802.3ba compliant
  • 100 Gigabit Ethernet and Fiber Channels
  • Data center routers and switchs
  • 4K video display system
  • Data Communication for SAN and LAN
  • Routers and switches, computer networks


Part Number Data Rate Wavelength Distance Power Budget Temp. Range
CP2-100GLR4-AT10K 100 Gb/s 4x CWDM 10 km 6 dB 0 – 70°C
CP4-100GLR4-AT10K 100 Gb/s 4x CWDM 10 km 6 dB 0 – 70°C
