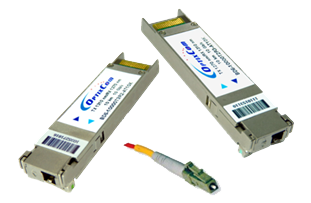

10G XFP LC Bi-Directional (BiDi) Optical Transceivers


OptixCom’s XFP BiDirectional (BiDi) optical transceivers utilize innovative wavelength division and packaging technology to transmit and receive optical signals through only one single fiber (single mode or multimode). The deployment of BiDi optical transceivers instantly doubles the bandwidth capacity of the existing optical fiber infrastructure. Our XFP BiDi transceivers comply with industry standard XFP Multi-Source Agreement (MSA).

Only one single fiber is needed for
Bi-Directional data communication!!
Features
  • One single fiber to transmit and receive simultaneously
  • 9.95 – 11.3 Gb/s, 10 - 80 km
  • 1270/1330 nm & 1490/1550 nm SM wavelength pair
  • Single LC connector, 30-pin Z-axis hot pluggable package
  • XFP MSA, IEEE 802.3-10G, and RoHS compliant
Applications
  • FTTH, FTTX, ATM/SONET, SDH, Ethernet
  • 10 Gigabit Ethernet, 10G Fiber Channel
  • High speed I/O bus extension, systems interconnects
  • Data Communication for SAN and LAN
  • Routers and switches, computer cluster cross-connect

Part Number Data Rate Wavelength Distance Power Budget Temp. Range
BD6-10000T2R3-AT10K 10 Gb/s 1270 nm/1330 nm BiDi 10 km 9 dB 0 – 70/-40 – 85°C
BD6-10000T3R2-AT10K 10 Gb/s 1270 nm/1330 nm BiDi 10 km 9 dB 0 – 70/-40 – 85°C
BD6-10000T2R3-AT20K 10 Gb/s 1270 nm/1330 nm BiDi 20 km 12 dB 0 – 70/-40 – 85°C
BD6-10000T3R2-AT20K 10 Gb/s 1270 nm/1330 nm BiDi 20 km 12 dB 0 – 70/-40 – 85°C
BD6-10000T2R3-AT40K 10 Gb/s 1270 nm/1330 nm BiDi 40 km 16 dB 0 – 70/-40 – 85°C
BD6-10000T3R2-AT40K 10 Gb/s 1270 nm/1330 nm BiDi 40 km 16 dB 0 – 70/-40 – 85°C
BD6-10000T2R3-AT60K 10 Gb/s 1270 nm/1330 nm BiDi 60 km 20 dB 0 – 70/-40 – 85°C
BD6-10000T3R2-AT60K 10 Gb/s 1270 nm/1330 nm BiDi 60 km 20 dB 0 – 70/-40 – 85°C
BD6-10000T4R5-AT80K 10 Gb/s 1490 mn/1550 mn BiDi 80 km 24 dB 0 – 70/-40 – 85°C
BD6-10000T5R4-AT80K 10 Gb/s 1490 mn/1550 mn BiDi 80 km 24 dB 0 – 70/-40 – 85°C
